KOVA-TMDH-4040-1 (KOVA3000)

KOVA-TMDH-4040-1 (KOVA3000)

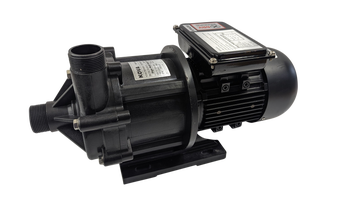

KOVA-TMDH-4040-1 (KOVA3000) Single Phase induction motor centrifugal magnetic drive pump.

Available in 380/440-3Ph, 220/240-50/60Hz and 110/60Hz. Max flow rate 330-Lpm at 0.5mtr-head – Min flow rate at 10.1-Lpm at 16.4-mtr head. Output 0.75KW / 1.0HP Standard working point flow rate 2989GPH/190LPM BSP Fittings: 40mm (1.5″) Inlet / 40mm (1.5″) Outlet. 130mm wide 478mm long 255mm high (without fittings)  AMP Draw 5.5 – 8.2 @ 240VAC

Capacitors for 220/240V 50/60Hz: (Start) CD60 100uf 450V – (Running) CBB60 25uf 300V

Capacitors for 110V 60Hz: (Start) TBA – (Running) TBA

Pump Body: Aluminium TEFC (Totally Enclosed Fan-Cooled) This means that Air is forced automatically over the Pump body by a connected fan at the back of the pump, pushing air forward over the pump body that increases the heat exchange (keeping the pump cool) .

Pump Head: GFRPP (Glass Reinforced Polypropylene with 30% reinforced Fibre) Very strong, and corrosion free, this includes the Impeller.

The shaft is made from “Alumina Ceramic” as well as the shaft seat. Built for longevity and reliability.
