Dometic awning hardware kit tall 878HT-BK Black powder coated ***$500.00***

Description

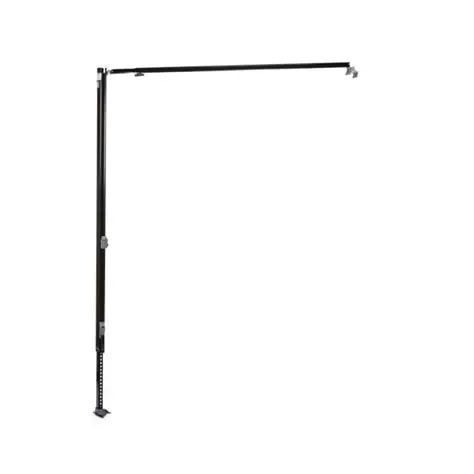

Dometic awning hardware kit tall Black

Part no: 878HT-BK

Description

Dometic’s 8700 Awning Hardware is purpose-built for performance in the harshest Australian conditions. Created as a Universal Awning Hardware Kit it will also suit pre-existing 8300, 8500 & 9000 Awning Barrels. Featuring a heavy-duty, powder coated aluminium construction and cast aluminium safety latches it is built to last, while the soft grip handles and five-star locking knob make it simple to use.

There are 3 sizes of 8700 awning hardware available and they can be used with your existing awning barrels if required. Matching the earlier versions they are based on the amount of space/height your trailer has available to mount the hardware. It is recommended to install the largest size that will suit your caravan.

• Ultra Short: Requires a minimum wall height of 1475 mm
• Standard (Previously known as Short): Requires a minimum wall height of 1620 mm
• Tall: Requires a minimum wall height of 1925 mmIf you are looking to replace your existing hardware you can determine your current hardware size by measuring your Main Arm and matching to one of the following sizes:Ultra Short Main Arm Length: 1350 mm
  Short/Standard Main Arm Length: 1550 mm
  Tall Main Arm Length: 1855 mm

  Features

  • Heavy duty aluminium construction
  • Powder coated
  • Cast aluminium safety latches
  • Soft grip handles
  • Five-star locking knobs for better grip
  • 1 year warranty.

  Specifications

  • Model: 878HT-BK
  • Brand: Dometic
  • Barcode: 878HT-BK
  • Minimum Wall Height Required 1925 mm
  • Black Powder Coated Finish
  • Suits 8700 Awnings
  • Flat Wall Installation Only
  • Can be used with existing 8300, 8500 Awning Barrels
  • Replaces Previous Models: 8483004.401B / 8271003.401B Individual Component Dimensions:
  • Main Arm Length: 1855 mm
  • Inner Arm Length: 1450 mm
  • Main Rafter Length: 1678 mm
  • Secondary Rafter Length: 826 mm
  • Shipping Weight: 12.00 Kgs.
  • Shipping Dimensions: 208 cm x 12 cm x 14 cm.
